二手E5071C KEYSIGHT(AGILENT)网络分析仪销售
二手E5071C,二手网络分析仪，二手AGILENT网分，二手进口网分，二手KEYSIGHT E5071C
一.产品描述

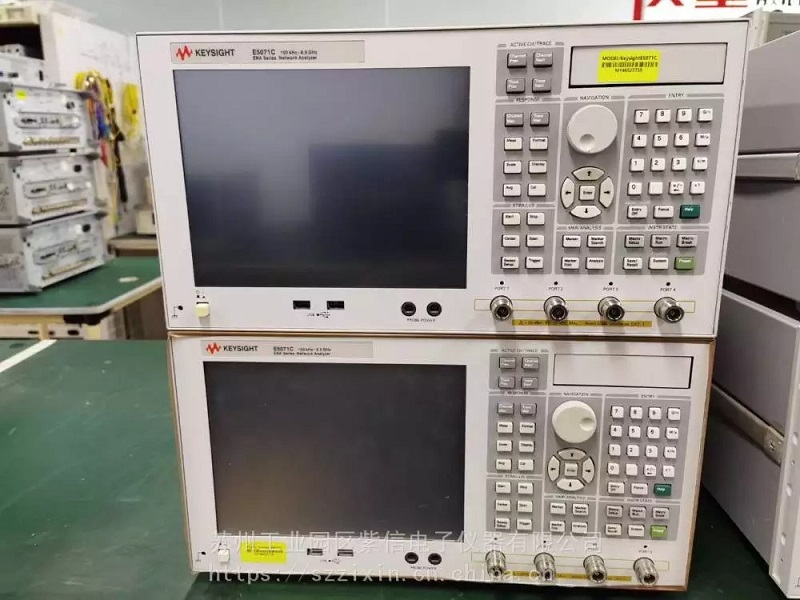

E5071C ENA 矢量网络分析仪
最大频率20 GHz
动态范围123 dB
输出功率10 dBm
轨迹噪声0.003 dBrms
内置端口数量2 或 4 端口
谐波-25 dBc
本底噪声-131 dBm
扫描速度最高可达 201 个点5 ms
应用
S 参数
多端口
平衡测量
元器件
电缆
混频器/变频器
放大器
谐振器
Additional features
E5071C-010时域分析
E5071C-790测量向导助手（MWA）软件
E5071C-008频率偏置模式
E5071C-TDRE5071C-TDR 增强型时域分析选件
Timebase stability
E5071C-UNQStandard stability timebase
E5071C-1E5High stability timebase
Calibration documentation
E5071C-1A7Calibration + Uncertainties + Guardbanding (Not Accredited)
E5071C-A6JANSI Z540-1-1994 Calibration
Test set
E5071C-2802-port Test Set, 9 kHz to 8.5 GHz without Bias Tees
E5071C-2852-port Test Set, 100 kHz to 8.5 GHz with Bias Tees
E5071C-4804-port Test Set, 9 kHz to 8.5 GHz without Bias Tees
E5071C-4854-port Test Set, 100 kHz to 8.5 GHz with Bias Tees
E5071C-2402-port Test Set, 9 kHz to 4.5 GHz without Bias Tees
E5071C-2452-port Test Set, 100 kHz to 4.5 GHz with Bias Tees
E5071C-4404-port Test Set, 9 kHz to 4.5 GHz without Bias Tees
E5071C-2K52-port Test Set, 300 kHz to 20 GHz with Bias Tees
E5071C-4454-port Test Set, 100 kHz to 4.5 GHz with Bias Tees
E5071C-4K54-port Test Set, 300 kHz to 20 GHz with Bias Tees
E5071C-4D54-port Test Set, 300 kHz to 14 GHz with Bias Tees
E5071C-4654-port Test Set, 100 kHz to 6.5 GHz with Bias Tees
E5071C-4604-port Test Set, 9 kHz to 6.5 GHz without Bias Tees
E5071C-2D52-port Test Set, 300 kHz to 14 GHz with Bias Tees
E5071C-2652-port Test Set, 100 kHz to 6.5 GHz with Bias Tees
E5071C-2602-port Test Set, 9 kHz to 6.5 GHz without Bias Tees
Hard disk drive options
E5071C-017Removable Data Storage
E5071C-019Standard Data Storage
Accessories
E5071C-1CMRack mount kit
E5071C-1CNFront handle kit
E5071C-1CPRack mount and front handle kit
E5071C-810Add keyboard
E5071C-820Add mouse
二.紫信提供二手E5071C KEYSIGHT(AGILENT)网络分析仪销售解决方案
1品质保证：只售原装正品，严格售前测试， 长期备有KEYSIGHT(是德科技）、AGILENT(安捷伦）、和R&S(罗德与施瓦茨）和ADVANTEST(爱德万)等进口品牌矢量网络分析仪，多种型号和数量可供选择；
2.免费送货：长三角地区城市包括苏州无锡昆山上海常州太仓常熟张家港吴江南京杭州镇江泰州南通嘉兴湖州合肥扬州临安宁波温州绍兴金华衢州台州丽水扬州徐州连云港市淮安市盐城市宿迁市芜湖蚌埠淮南马鞍山淮北铜陵安庆黄阜阳宿州滁州市六安宣城池州亳州等,根据仪器的具体情况采取免费上门送货或快递的方式；
3.售价优惠：时刻保持销售价格优惠于同行业竞争对手；
4.技术支持：对所出售仪器提供使用和操作的技术支持，协助客户完成测试解决方案；
5.售后服务：保修12个月，以强大的维修能力，支持售后保修服务；
6.销售的主要网络分析仪型号：
E5071C,E5071B,E5080A,E5072A,E5080B,E5070B,E5062A,E5061A,E5063A,E5061B,ZNB8,ZNB4,ZNB20,,N5221A,N5221B,N5222A,N5222B,N5 224A,N5224B,N5225B,N5225A,N5234B,N5234A,N5230A,N5230C,N5227B,N5222BT,N5225BT,N5232A,N5232B,N5235B,N5235A,N5231B,N5231 A,N5239B,N5290A,N5242A,N5242B,N5241B,N5241A,N5244B,N5244A,N5245B,N5245A,N5247A,N5247B,N5249A,N5249B,N5264A,N5264B,N52 91A,N5245BQ,N5245BV,N5244BM,N5245BM,N5245BP,N5247BM,R3765CH,R3765CG,R3767CH,R3767CG,P9370A,P9371A,P9372A,P9373A,P9374 A,P9375A,P5000A,P5001A,P5002A,P5003A,P5004A,P5005A,P5006A,P5007A,P5008A,P5020A,P5021A,P5022A,P5023A,P5024A,P5025A,P50 26A,P5027A,P5028A,N9951B,N9916A,N9917A,N9936B,N9915A,N9914A,N9913A,N9918A,N9925A,N9926A,N9927A,N9928A,N9935A,N9916B,N 9917B,N9936A,N9937A,N9938A,N9923A,N9912A,N9918B,N9950A,N9951A,N9952A,N9960A,N9961A,N9962A,N9950B,N9952B,N9953B,N9960B ,N9962B,N9963B,N9961B,N9913B,N9914B,N9915B,N9933B,N9934B,N9935B,N9937B,N9938B,8719ES,8720ES,HP8722ES,8722ES,HP8720D,8 720D,HP8720ES,HP8722D,8722D,8753ES,HP8753ES,8753E,HP8753E,E8356A,E5100A,E8363B,E8357A,E8358A,E8362B,E8362C,E8364C,870 50A,87050E,87050B,8753D,HP8753D,8753C,HP8753C,8757D,HP8712ET,8712ET,HP8712ES,8712ES,HP8714ES,8714ET,HP8714ET,8714ES,8 713C,8714C,HP8711A,HP8711C,MS4263B,MS2024A,R3755A,R3760,R3768,ZNA26,ZNA43,ZNA50,ZNA67,ZVA110,ZVT8,ZVT20,ZNBT8,ZNBT20, ZNBT26,ZNBT40,ZNB40,ZND,ZNL3,ZNL4,ZNL6,ZNL14,ZNL20,ZNH4,ZNH8,ZNH18,ZNH26,ZVL13,ZNLE3,ZNLE4,ZNLE6,ZNLE14,ZNLE18,ZVB8,Z VB4等等

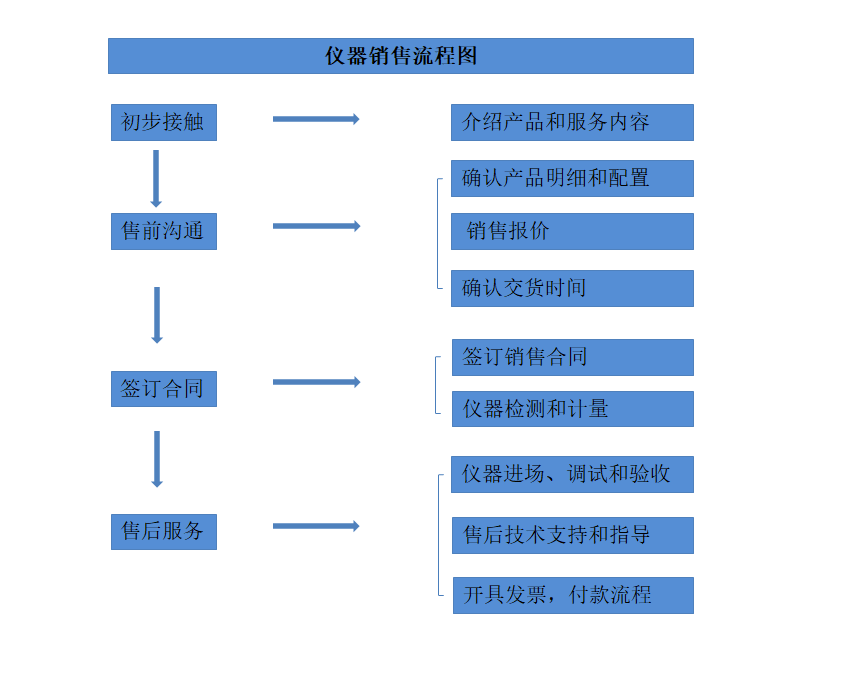

三.二手E5071C KEYSIGHT(AGILENT)网络分析仪销售流程
